Machinery Details

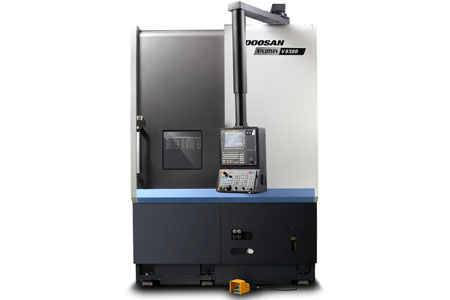

- VERTICAL TURNING CENTER.
- DOOSAN- PUMA V8300
- Max Turning dia 830mm, Max turning Length 750mm.
- Spindle Motor Power- 30/22 KW. Chuck Dia 610mm.
- No of Tool Station -12
- VERTICAL MACHINING CENTERS with 4th Axis.
- MAKE - DOOSAN VC 510
- QTY - 3 NOS.
- Travels X-axis 762mm, Y- axis 516mm, Z-axis 570mm.
- Pallet 2 – 860 X 570mm
- Spindle Speed - 10000 r/min, Spindle Motor-18.5/15 kw
- Tool Shank - BT40. Tool storage Capacity- 30.

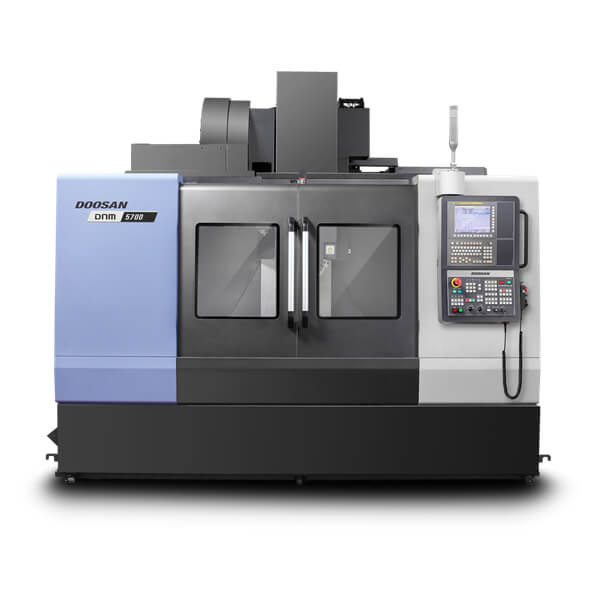

- VERTICAL MACHINING CENTER With 4th Axis.
- MAKE - DOOSAN- DNM 5700
- Travels X-axis 1050mm, Y- axis 570mm, Z-axis 510mm.
- Table - 1200 X 570mm
- Spindle Speed - 8000 r/min, Spindle Motor-18.5/11 kw
- Tool Shank - BT40. Tool storage Capacity- 30.

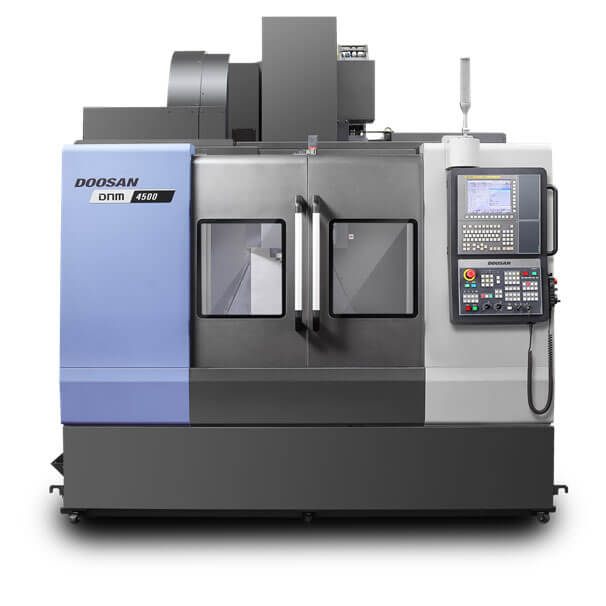

- VERTICAL MACHINING CENTER.
- MAKE - DOOSAN- DNM 4500
- Travels X-axis 800mm, Y- axis 450mm, Z-axis 510mm.
- Table - 1000 X 450mm
- Spindle Speed - 8000 r/min, Spindle Motor-18.5/11 kw
- Tool Shank - BT40. Tool storage Capacity- 30.

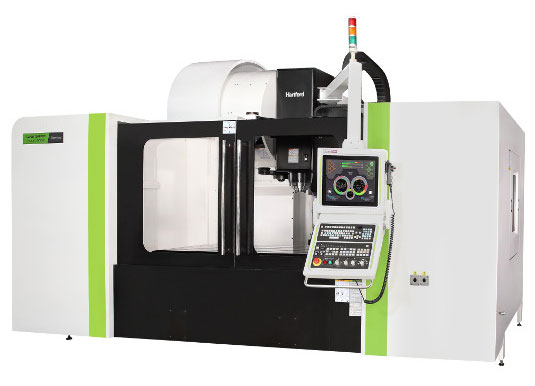

- VERTICAL MACHINING CENTER.
- MAKE – HARTFORD 2060A
- Travels X-axis 2060mm, Y- axis 850mm, Z-axis 700mm.
- Table - 2100 X 850mm.
- Spindle Speed - 6000 r/min,
- Tool Shank – BT50. Tool storage Capacity- 40
- VERTICAL MACHINING CENTER with 4Th Axis
- MAKE–BFW -NOVELL
- Travels X-axis 650mm, Y- axis 510mm, Z-axis 510mm.
- Pallet 2 – 750 X 450mm
- Spindle Speed - 8000 r/min, Spindle Motor-11/15 kw
- Tool Shank - BT40. Tool storage Capacity- 24.

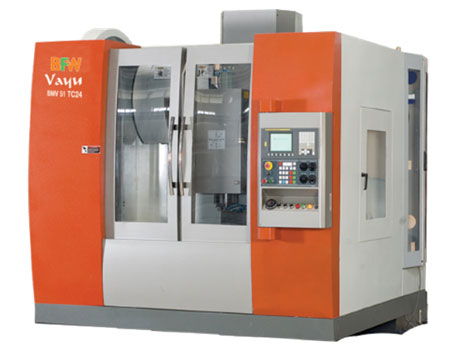

- VERTICAL MACHINING CENTER.
- MAKE – BFW BMV 51
- Travels X-axis 850mm, Y- axis 450mm, Z-axis 510mm.
- Table - 1000 X 450mm
- Spindle Speed - 8000 r/min, Spindle Motor-11/15 kw
- Tool Shank - BT40. Tool storage Capacity- 24.
- VERTICAL MACHINING CENTER with 4Th Axis
- MAKE–BFW -NOVELL
- Travels X-axis 650mm, Y- axis 510mm, Z-axis 510mm.
- Pallet 2 – 750 X 450mm
- Spindle Speed - 8000 r/min, Spindle Motor-11/15 kw
- Tool Shank - BT40. Tool storage Capacity- 24.
- TURNING CENTER
- HYUNDAI KIA – SKT 165
- Chuck Dia -250mm
- Max turning Dia 300 mm , Max turning length 400mm.

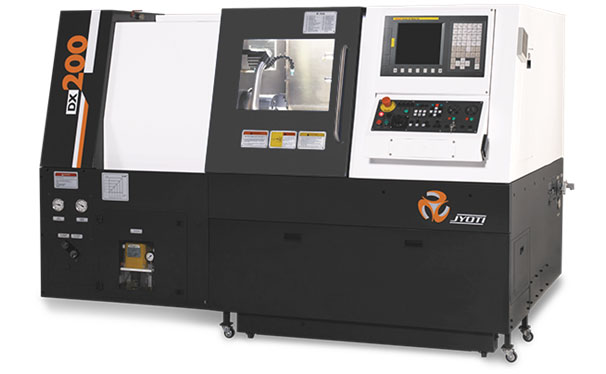

- TURNING CENTER
- JYOTI - DX 200
- Chuck dia 200mm
- Max turning Dia 300mm. Max turning Length 500 mm.

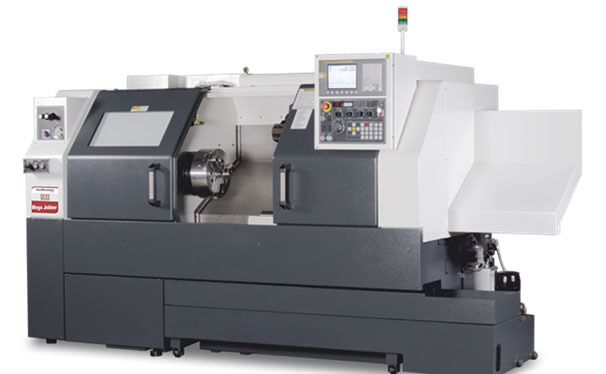

- TURNING CENTER
- ACE DESIGNERS – JOBBER LM
- Chuck Dia 250mm
- Max turning Dia350mm , Max turning Length 550mm.

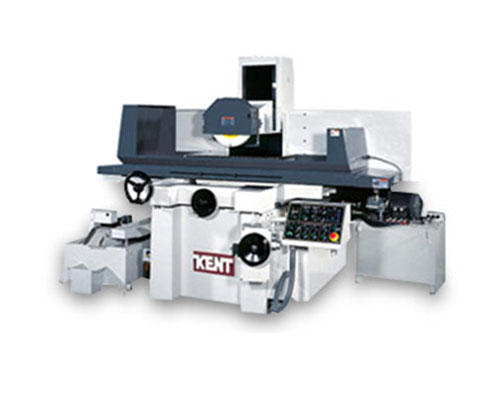

- SURFACE GRINDER
- KENT - KGS 84AHD
- Table size -800mm x 400mm.
- DOT MARKING MACHINE
- SIC - EC1.
- Marking window -120 mm x100 mm
